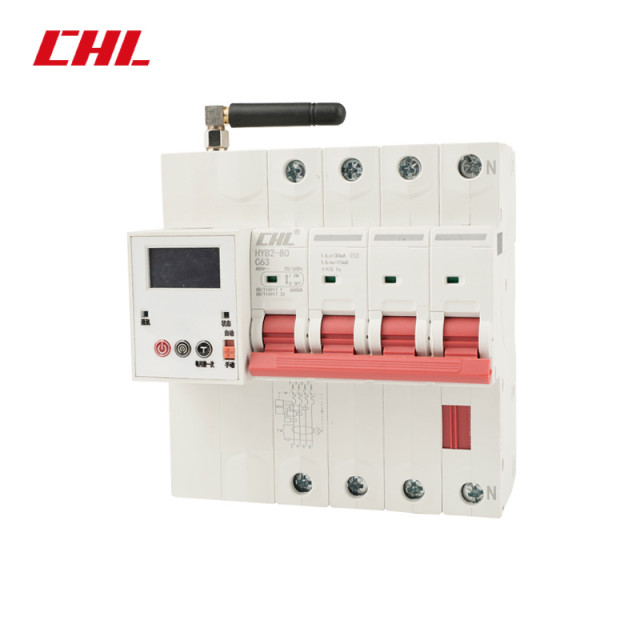

HYB2-80 Internet of Things (Screen Display) 4p

HYB2-80WL Internet of Things Intelligent Circuit Breaker is suitable AC50Hz，with a rated voltage up to 230V/400V and a rated current up to 80A.It serves to provide overload and short-circuit protection in the circuit.Additionally, through IoT communication technology, it can achieve remote control for automatic closing of the circuit breaker to supply power, and automatic tripping to cut off power.

Online Inquiry Contact Us

Application Scenario Diagram

Online Inquiry

Submit

Related Products

Gateway

Product poles：2P
Operating frequency：50/60Hz
Operating voltage：AC230V
Input voltage：100-250V AC
Rated output current：3A
Rated output voltage：DC12V
Reading method：4A/WiFi/PLC/LoRa
Communication protocol：MQTT protocol
Lightning protection：4KV

HYB1-100 2p 4P 18Module Over- and under-voltage protection charge control recloser

HYB1-100 type electric energy meter external circuit breaker is suitable AC50Hz，with a rated voltage up to 230V/400V and a rated current up to 100A.IT serves to provide overload and short-circuit protection in the circuit It can be used in conjunction with an IC card prepayment electricity meter, enabling remote long distance default automatic switching off power,pay automatic closing power supply.
