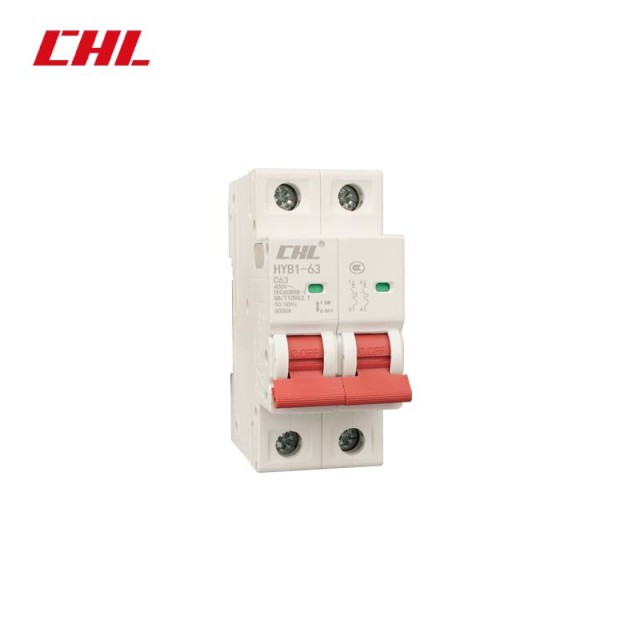

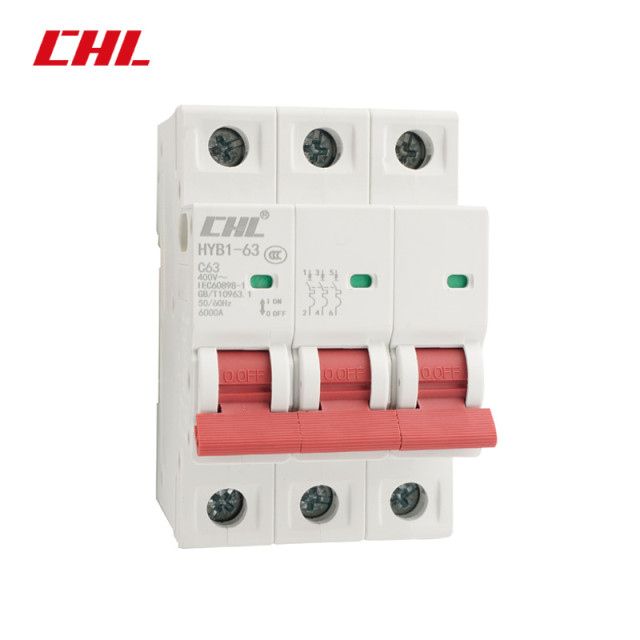

HYB1-63 Miniature Ciircuit Breaker

Pole number:1P、2P
Shelf rating current:63A
Rated working Voltage Ue (V AC):230/400
Rated current In(A):1、2、3、4、6、10、16、20、25、32、40、50、63
Rated Insulation Voltage Ui (V):500
Rated Impulse Voltage Uimp (kV):4
Breaking capacity Icn kA:4.5
Force capacity Ics kA:4.5
Curve type:B、C、D
Release type:Thermomagnetic
Service life:Machinery Actualaverage:20000
Standard value:8500
Electrical Actual average:10000
Standard value:1500

Product Core Advantages

1、The shell frame is of high grade,high breaking capacity,and strong adaptability of accessories.

2、The wiring column has the advantage  of higher safety.

3、Current-limiting contact system,magnetic blown arc extinguishing device,aviod products and equipment to withstand large short-circuit current,improve product arc extinguishing Ability to ensure the improvement to breaking capacity.

4、The shell and function keys are made of imported PA nylon with high flame retardent,high temperature resistance.

5、Its shall is novel,its struction is reasonable,and it has many patent protection

Outline dimension
